High efficiency uv dryer uv curing machine

  • Feeder size:
  • Capacity:
  • Feature:with small volum, light weight, precise making, convenient moving, is suitable to install on desktop...

Contact customer service online

High efficiency uv dryer uv curing machine
  • Features
  • Technical data
  • Inquiry

curing machine.JPG


Brief introduction of uv curing machine:

The UV curing machine is used in cellphone crust, compact disc, thin film switch, electronic and plastic crust UV surface to painting, kinds of UV paint, IMD injection products curing. Morever, it also can be used to cure electronic components, liquid crystal film, terminal gumming, cellphone parts sticking and LCD etc. The machine with small volum, light weight, precise making, convenient moving, is suitable to install on desktop

Technical parameters of uv curing machine:

Model

CR-1500

CR-2000

Total length

1500mm

2000mm

UV working area length

800mm

1200 mm

Number of UV tubes

3KW*1 piece

3KW*2 pieces

Conveyor belt material

Teflon

Teflon

Belt feeding length

350mm

400 mm

Belt discharge length

350mm

400 mm

Conveyor belt width

500mm

500 mm

Conveyor belt height

100-180mm adjustable

200mm

Conveyor speed

0-10m/min adjustable

0-10m/min adjustable

UV tube

460mm

600mm long, 20Watt

UV rays wave length

320nm

320nm

Voltage

Single phase,110V 60Hz

3 phase,220V 60Hz

Power

3.5KW

6.8 kw

Size (LxWxH)

1500*710*1400mm

2000*710*1400mm

Weight

120kg

140kg

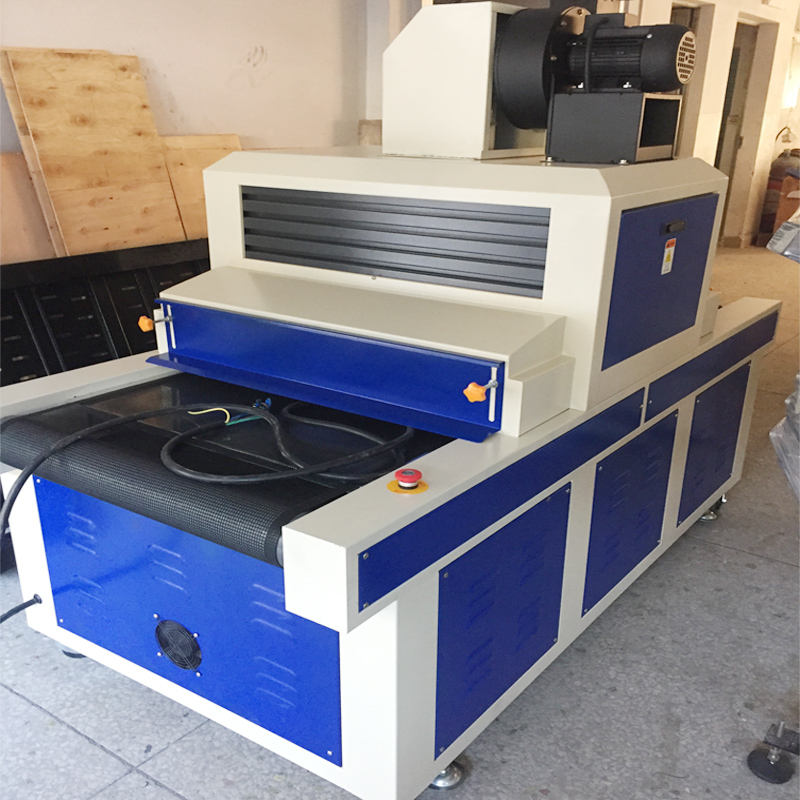

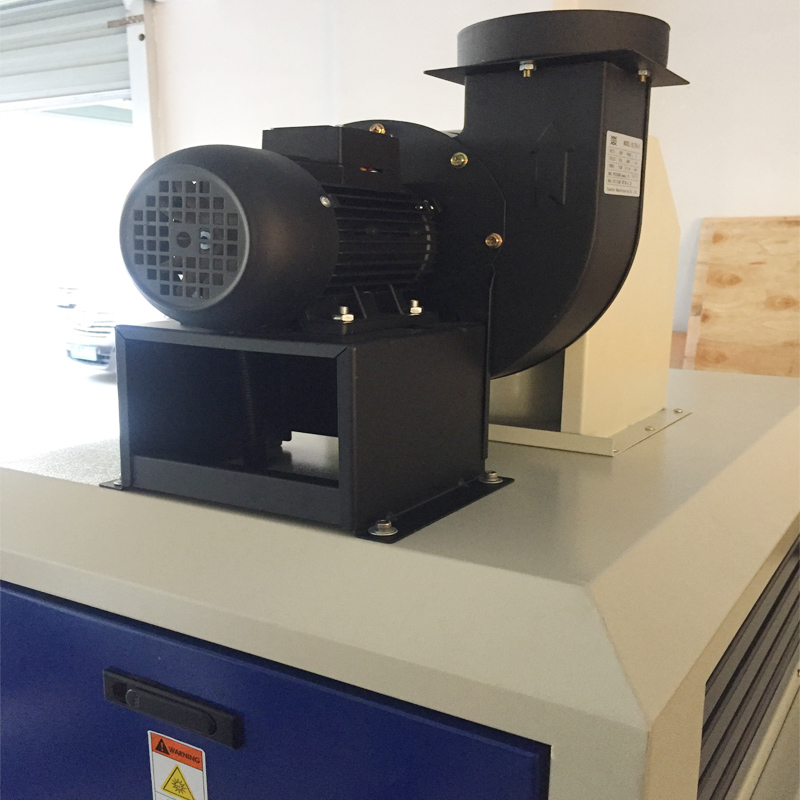

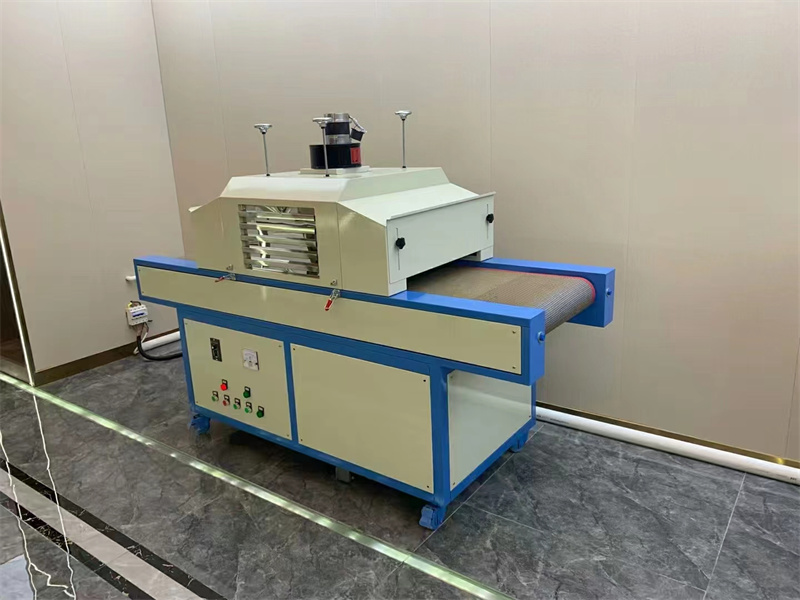

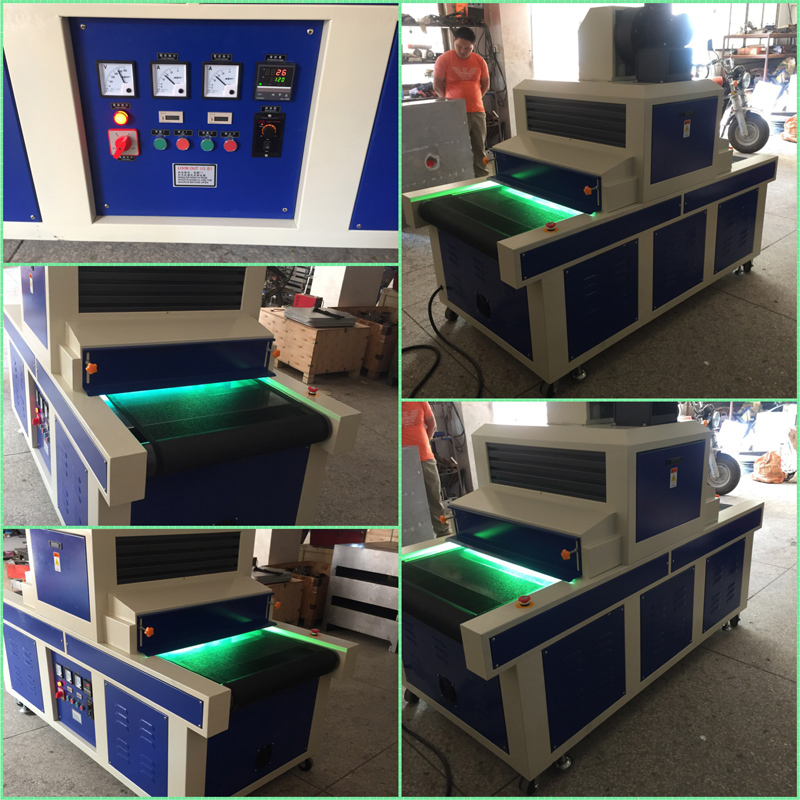

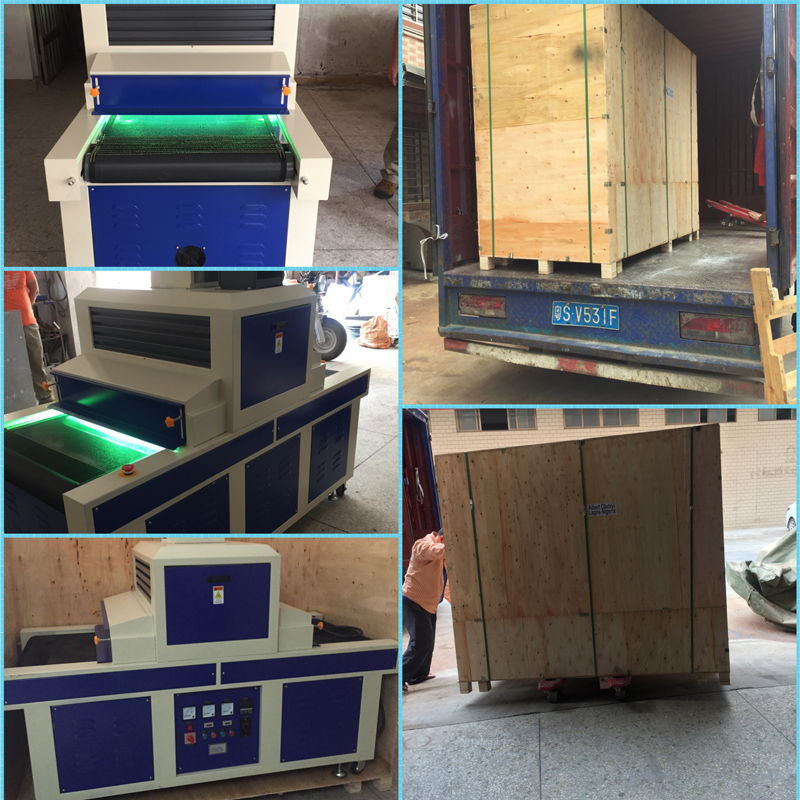

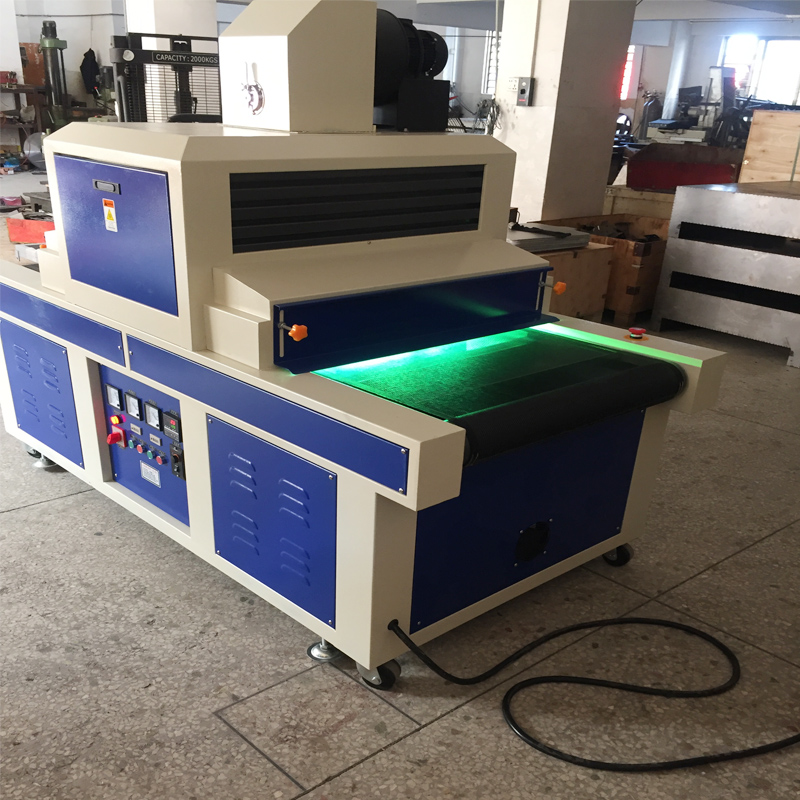

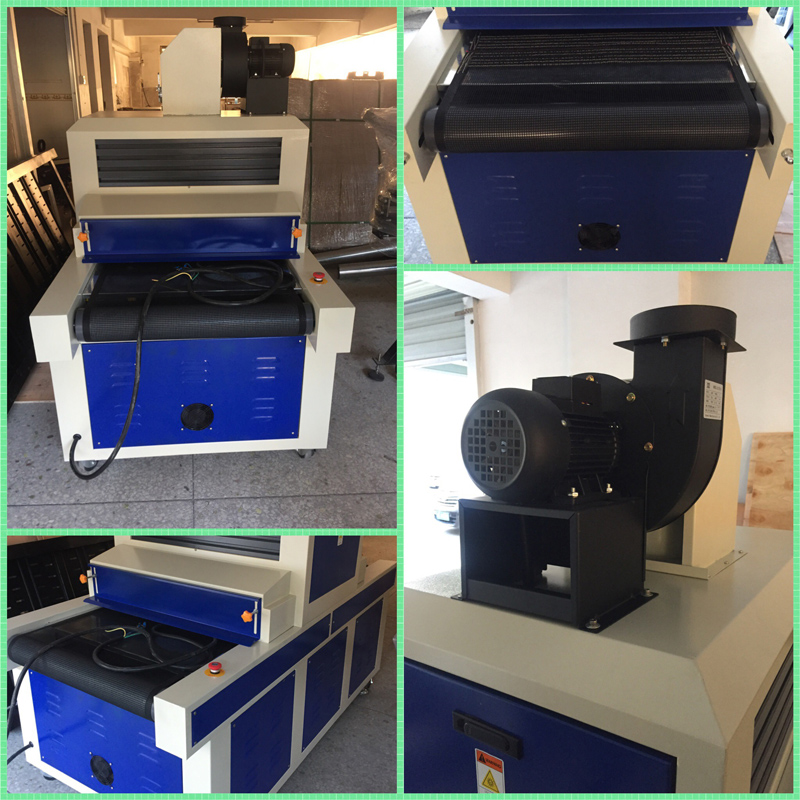

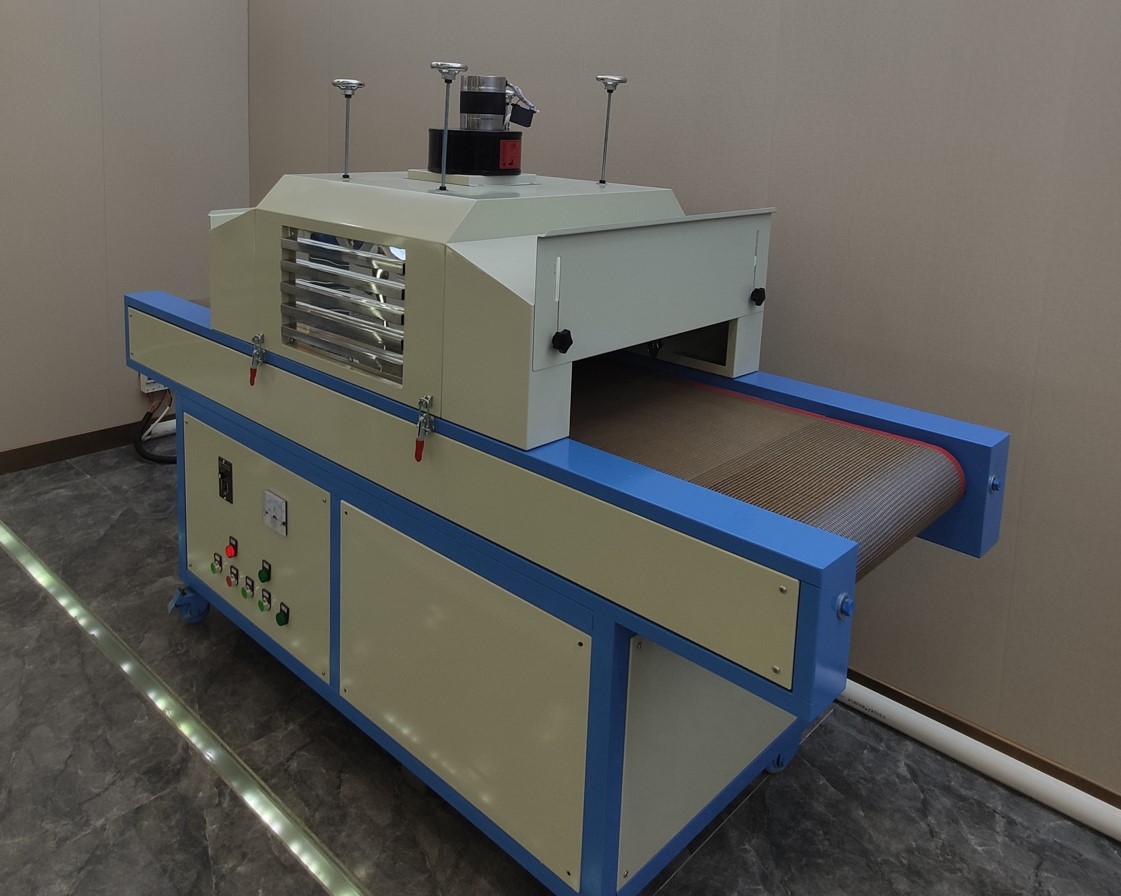

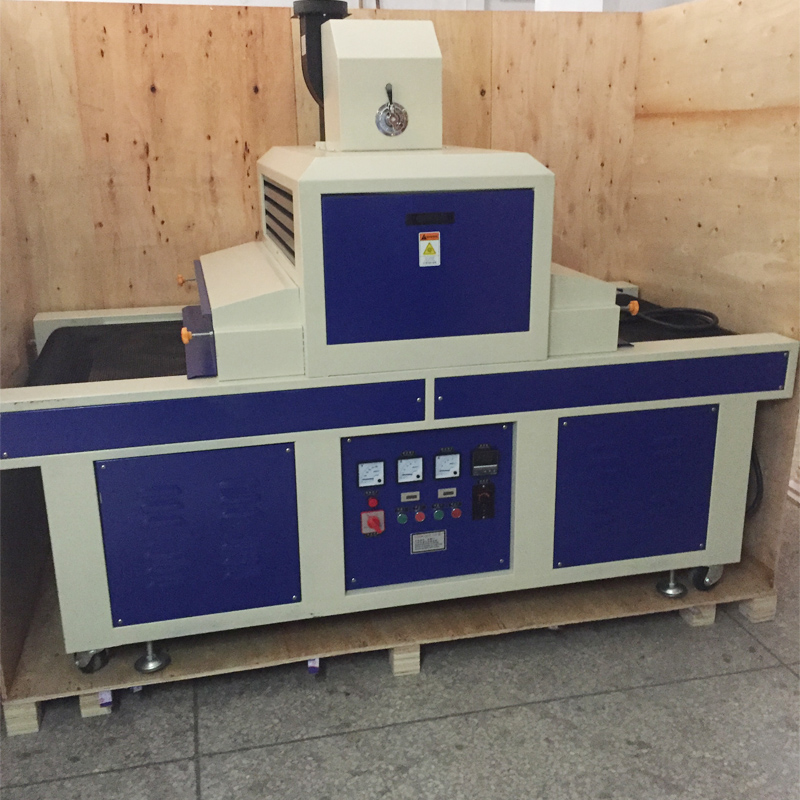

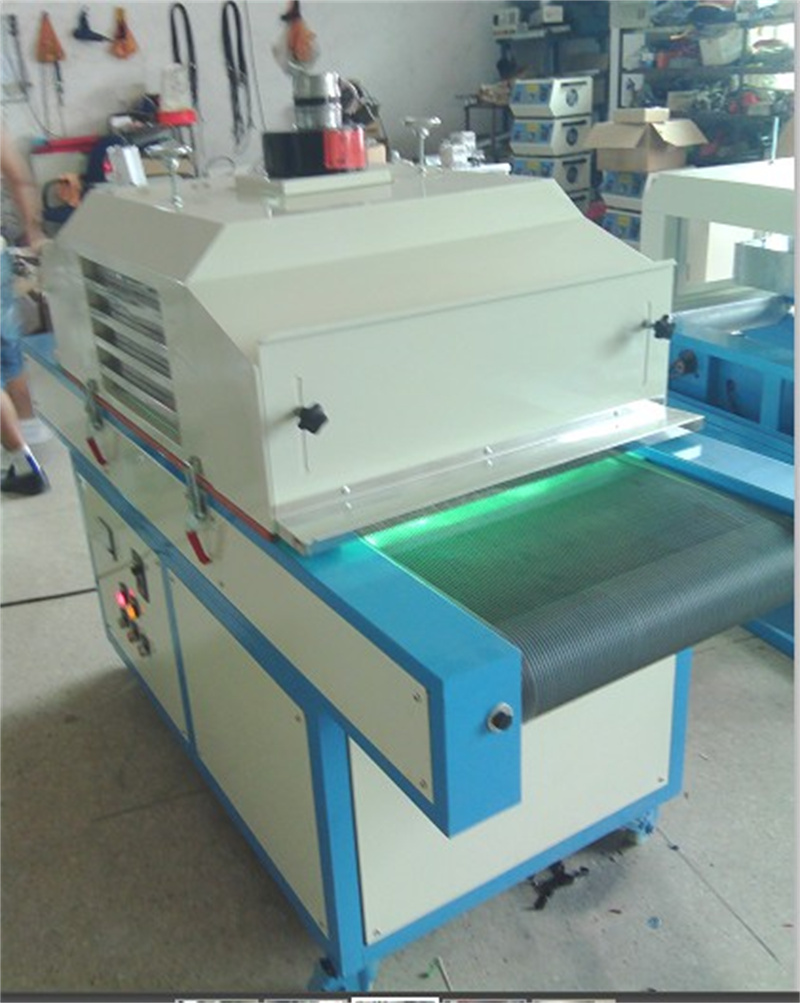

Pictures of uv curing machine
